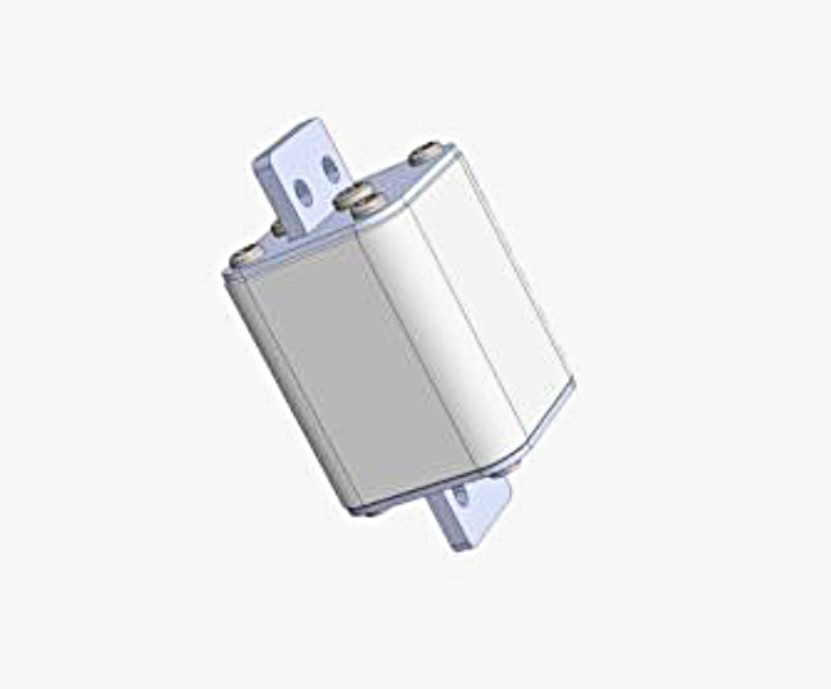

EV熔断器ES01-630A-X 750VDC630A

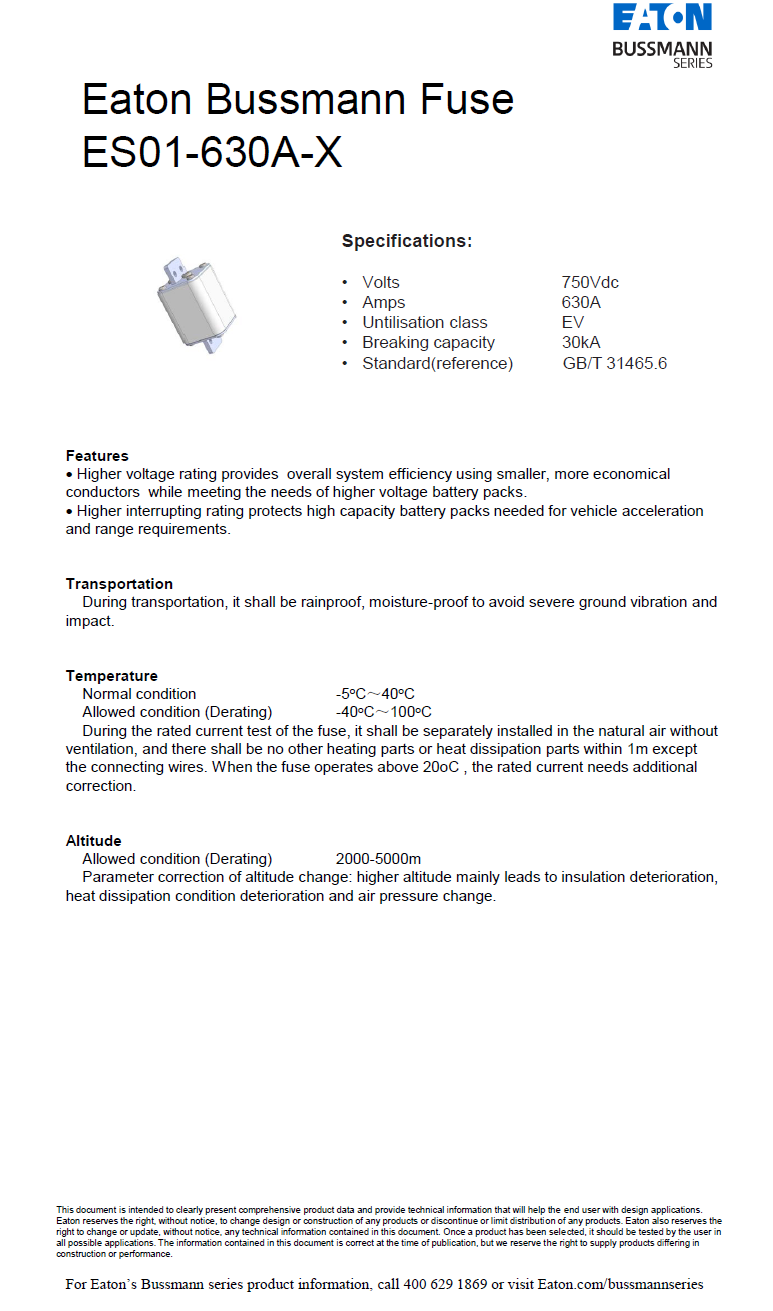

规格：·
电压 750Vdc·
电流 630A
·Untilisation class EV
·分断能力 30kA
·标准（参考）GB/T 31465.6
应用：EV 熔断器 车用高压熔断器 车载熔断器

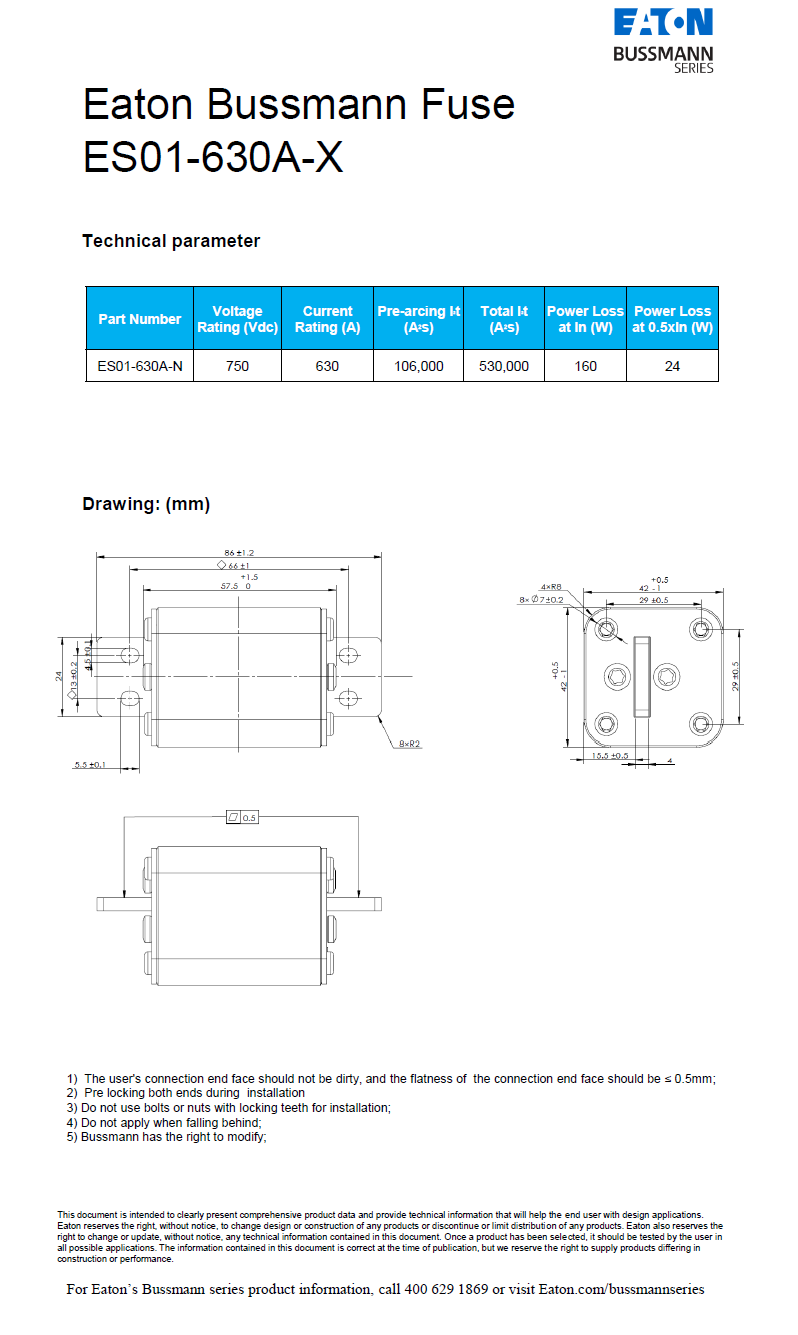

| Part Number | Voltage Rating (Vdc) | Current Rating (A) | Pre-arcing I2t (A2s) | Total I2t (A2s) | Power Loss at In (W) | Power Loss at 0.5xIn (W) |
| ES01-630A-N | 750 | 630 | 106,000 | 530,000 | 160 | 24 |
