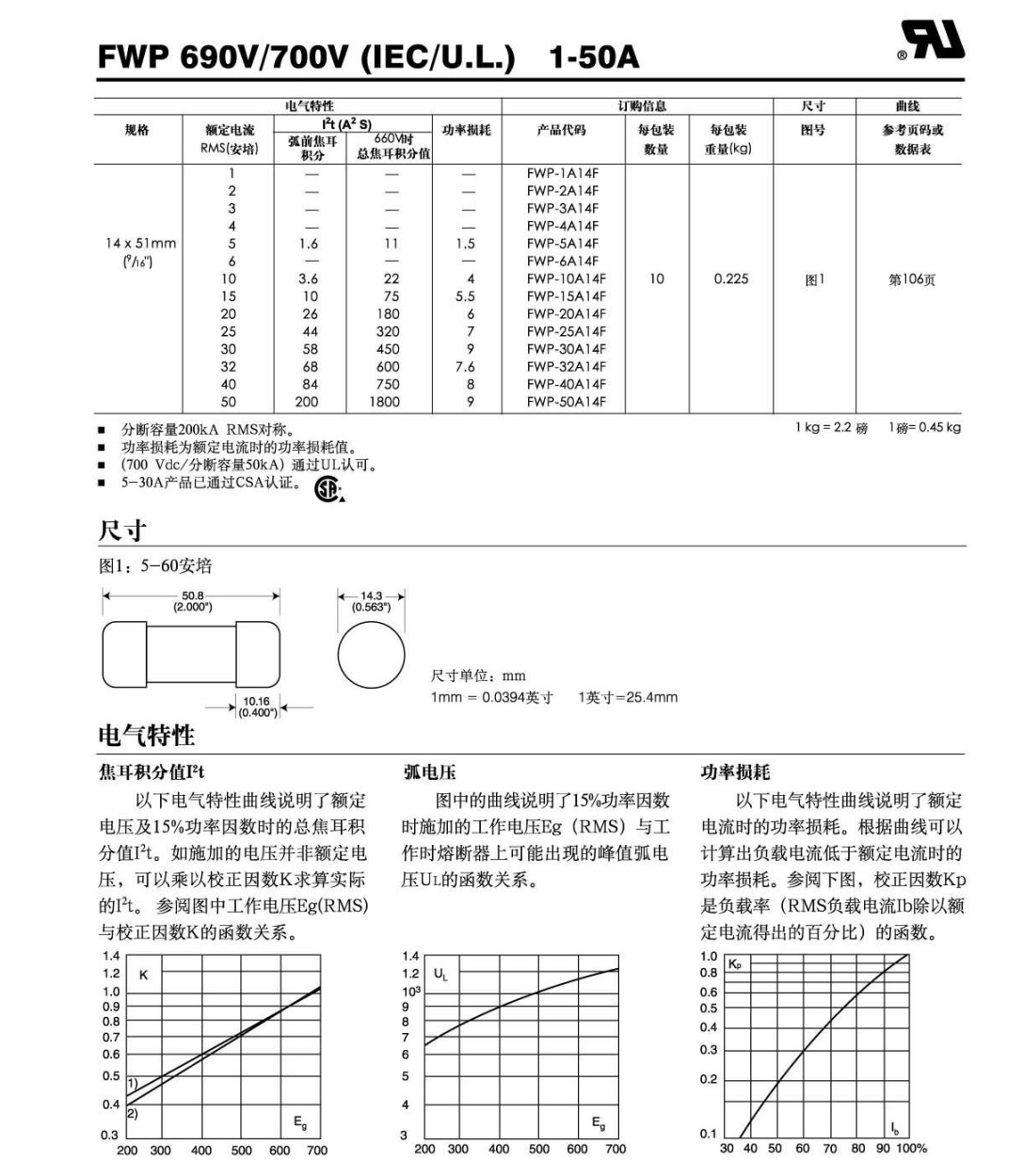

产品名称:圆管快熔FWP-50A14F 700V/32A
BUSSMANN圆管快速熔断器FWP系列:
典型保护: 半导体设备(如整流二极管、可控硅、IGBT等),电源设备(如变频器、UPS、母线、电缆等)
电压:660V/700V,电流1A~50A ,分断电流:200KA,尺寸:14*51mm
无撞针型号:FWP-1A14F,FWP-2A14F,FWP-3A14F,FWP-4A14F,FWP-5A14F,FWP-6A14F,FWP-10A14F,FWP-15A14F,FWP-20A14F,FWP-25A14F,FWP-30A14F,FWP-32A14F,FWP-40A14F,FWP-50A14F
带撞针型号:FWP-10A14FI, FWP-15A14FI, FWP-20A14FI ,FWP-25A14FI
FWP-30A14FI ,FWP-32A14FI, FWP-40A14FI, FWP-50A14FI
电压:660V/700V,电流20A~100A ,分断电流:200KA,尺寸:22*58mm
型号:FWP-20A22F,FWP-25A22F,FWP-32A22F,FWP-40A22F,FWP-50A22F,FWP-63A22F,FWP-80A22F,FWP-100A22F
BUSSMANN圆管系列快熔基本介绍:
BUSSMANN提供符合各国标准的全系列圆型管式(圆柱形、夹式安装)熔断器。产品设计、构造独特,适合占用空间小的小型UPS、小型交流驱动器以及其他小功率应用。具有以下特点:
1. 循环性能强
1.总焦耳积分(I ²t)小
圆型管式熔断器科安装于熔断器夹、熔断器座、熔断器盒或带熔断器的开关。产品品种丰富,适合不同用户的要求。
BUSSMANN圆管快速熔断器FWA系列
电压:150Vac
电流:5A~60A 分断容量100KA RMS对称
尺寸:10*38mm 21*51mm
认证:UL、CE
说明:快速熔断器
供应BUSSMANN保险丝FWA系列: FWA-5A10F,FWA-10A10F,FWA-15A10F,FWA-20A10F,FWA-25A10F,FWA-30A10F,FWA-35A21F,FWA-40A21F,FWA-45A21F,FWA-50A21F,FWA-60A21F
BUSSMANN圆管快速熔断器FWC系列
电压:600Vac
电流:6A~32A 分断容量200KA RMS对称
尺寸:10*38mm
认证:UL、CE
说明:快速熔断器
FWC-6A10F·FWC-8A10F ·FWC-10A10F·FWC-12A10F·FWC-16A10F·FWC-20A10F
FWC-25A10F·FWC-32A10F
BUSSMANN圆管快速熔断器FWX系列
电压:250Vac
电流:1A~30A 分断容量200KA RMS对称
尺寸:14*51mm
认证:UL、CE
FWX-1A14F·FWX-2A14F ·FWX-3A14F·FWX-4A14F·FWX-5A14F·FWX-10A14F
FWX-15A14F·FWX-20A14F ·FWX-25A14F·FWX-30A14F·FWX-50A14F
BUSSMANN圆管快速熔断器FWH系列
电压:500Vac,电流0.25A~30A ,尺寸:6*32mm FWH-.250A6F·FWH-.500A6F ·FWH-001A6F·FWH-002A6F·FWH-3.15A6F·FWH-005A6F
FWH-6.30A6F·FWH-007A6F ·FWH-010A6F·FWH-12.5A6F·FWH-015A6F·FWH-016A6F,FWH-020A6F·FWH-025A6F ·FWH-030A6F
电压:500Vac,电流1A~30A ,尺寸:14*51mm
FWH-1A14F,FWH-2A14F,FWH-3A14F,FWH-4A14F,FWH-5A14F,FWH-6A14F,FWH-10A14F,FWH-12A14F,FWH-15A14F,FWH-20A14F,FWH-25A14F,FWH-30A14F
BUSSMANN圆管快速熔断器FWK系列:
电压:750V,电流5A~60A ,分断容量:100KA RMS对称
尺寸:20*127mm,型号如:FWK-5A20F,FWK-8A20F,FWK-10A20F,FWK-15A20F,FWK-20A20F,FWK-25A20F,FWK-30A20F
尺寸:25*146mm,型号如:FWK-35A25F,FWK-40A25F,FWK-50A25F,FWK-60A25F
BUSSMANN圆管快速熔断器FWJ系列
电压:100V,电流20A~30A ,分断容量:25KA RMS对称,尺寸:22*58mm
型号如:FWJ-20A14F,FWJ-25A14F,FWJ-30A14F
BUSSMANN圆管快速熔断器FWL/FWS系列
电压:1250V/1500V/2000V,电流2A~30A ,分断容量:45KA RMS对称,尺寸:20*127mm
型号如:FWS-2A20F,FWS-6A20F,FWS-8A20F,FWS10A20F,FWS-12A20F,FWS-152A20F,FWS-20A20F,FWS-25A20F,FWS-30A20F
